Identifying Routes

Before writing any line of code it is important to state or know exactly what the system will do. Defining what the system does in a concise statement not longer than two or three sentences is very important to have clarity of purpose. Programming is a complex psychological act and being precise is a bedrock in building the right system. Added to building the right system is building the system right. This can be achieved by explaining how the system works. Both knowing what the system does and how the system does its tasks are important. Taking our project, mWallet as an example. We can derive the tests cases from knowing “what the system does” and we can derive our application code base from knowing “how the system works”.

What the system does

mWallet allows users to post their interest in buying or selling cryptocurrencies and allows registered agents (other users) to fill these orders without the requirement for a direct person-to-person exchange or conversation.

The statement above gives a direction on what vital services will be available in the mWallet project. The services identified from the purpose statement are:

  1. Users can post order to buy or sell cryptocurrency
  2. Users can satisfy published orders

Let’s name these key functions of our system the functional requirements. In effect, if our system cannot perform these tasks we can say we failed to meet our objectives. Having identified these requirements, we can define test cases that will check if our system can post an order, buy an asset through posted order, sell an asset through posted order, debit the buyer accordingly while equally crediting the seller of the asset.

Tests can be written as a function prefixed with the word test_ or as methods of a class which is often prefixed with the word test. It is good practice to have all tests in a package named tests. We will be using pytest for the project and it can run both tests written as classes that extend unittest.TestCase or functions prefixed with test_.



from unittest import TestCase


class TestTransaction(TestCase):

    def setUp(self) -> None:
        ...

    def tearDown(self) -> None:
        ...

    def test_place_order(self) -> None:
        ...

    def test_satisfy_order(self) -> None:
        ...

    def test_transaction_history(self) -> None:
        ...

    def test_current_orders(self) -> None:
        ...

The test above can be written as a collection of functions as shown blow.



def test_place_order(order: dict) -> None:
    ...


def test_satisfy_order(transaction_id, order, account, wallet, escrow, ) -> None:
    ...


def test_transaction_history() -> None:
    ...


def test_current_orders() -> None:
    ...

Our identified tests will also define the various URLs or Application Programming interfaces (API) endpoints of the system. If our system is interactive, it is expected to give information or some sort of data to the user. Let’s call any valid information given by the system a resource. A resource can be a digital file to download, a record from a database or any web page we wish to share. This resource can be named and accessed via its name. Let us attempt to use intuitive names to identify resources for our API endpoints.

We will name the following resources which can have associated functions for handling HTTP requests from our users.

  • Order Resource
  • User Resource
  • Asset Resource
  • Cryptocurrency Wallet Resource

🔍

Details regarding designs of RESTful web applications are beyond this book. A good place to get more information on how to design a RESTful application is the swagger documentation.

We now have a collection of tests, a set of resources, but we need to check if these can help us reach our system requirements. To meet our requirements, certain other questions need to be asked. These questions should provide answers to how the system works. We will progress on this in the next section.

How the system works

mWallet is a P2P system designed to satisfy orders both online and offline. To achieve this, orders are posted to users who can then satisfy them as agents. Orders can be fully or partially satisfied, and payments remitted appropriately. Orders are published to the pool of agents via email and in-app messages. Offline transactions are like real time transactions but kept open for a longer period.

Offline transactions require an authorization token or passcode from an agent before adding them to the order. Transaction keys enforce password-less transactions and limit access to wallets and order system for unauthorized or unregistered agents. Escrow accounts and managed wallets protect users from exposing sensitive banking or wallet information. This approach is used both by the real time and offline payment system. Details on the system encryption, random function for selecting agents from a pool, and generating escrow accounts for payments are beyond the scope of this book. With these guidelines on how the system should work, let us consider how the identified resources can address the system behaviour.

  • The Order resource can manage both online and offline requests to buy or sell cryptocurrency.
  • The User resource can manage registration of new system users and agents, the user associated transaction keys, the user associated bank accounts and user access control.
  • The Asset resource will manage a list of cryptocurrencies that can be bought or sold on the platform.
  • The Wallet resource will manage escrow wallets for receiving digital assets.

We will now attempt to match a resource to a set of URLs that will enable users to interact with the system.

  • Order
    • Add order
    • View order
    • Edit order
    • Delete order
    • Add order to pool
    • Satisfy order
    • Debit buying party
    • Credit selling party
    • List transaction history
    • Assign order to an agent or agents to satisfy
  • User
    • Add user (new user registration)
    • View user
    • Edit user
    • Delete user
    • Assign transaction key to user
  • Asset
    • List available digital assets
    • View exchange rate of digital asset to fiat
  • Wallet
    • Generate address for user
    • Assign cryptocurrency address or wallet to user
    • List blockchain transaction history for address
    • View transaction detail of an address

The list excludes cryptographic key management, signals or event management, and utility functions used in the project.

ℹ️ Tips and Tricks - Protecting the user resource

An alternative design of resource may include a Transaction resource, Bank Account resource, a User Key resource, and a User Preference resource. These will enable users to view transactions associated with their orders and manage various items associated to their profile. In our design approach for this book, user is treated as a special resource which is only added upon sign up and cannot be viewed, edited, deleted, or updated like other resources. Special functions and security checks are used to manage the user resource. This approach can also be adopted in a real-life project to reduce possible cases of updated or deleting a user’s record via unapproved admin users.

The summary above can be modified as we iterate through the system and get feedback from our target users. However, for our example, we will keep things simple – possibly very simple to allow the reader to explore alternatives and expand on the project on their own. From the above list, we can generate a set of URLs. We will save this in a route.yml file which will be used to dynamically load API routes and permissions later in the project.

A classic way of defining routes in FasAPI

A Uniform Resource Locator (URL), a subset of Uniform Resource Identifier (URI), is an identifier for accessing a resource that is on the Internet and specifies what protocol to use in accessing a resource. A resource could be a web page or some other file. For the web application in view, URLs will be used to send or receive information from the system. There are key parts that make up a URL. Some key components of a URL include:

The protocol or scheme: This will be HTTP/HTTPS for RESTful applications. The protocol determines how computers communicate. There are several standards like File Transfer Protocol (FTP) for file transfer, Hypertext Transfer Protocol (HTTP) for web communication etc.

Host name or domain name: A resource on the internet can be accessed via its unique IP address. However, it is easier to remember readable names than a set of numbers separated by dots .. Domain names provide a human readable name that is mapped to an IP address. Example of a domain name is www.yahoo.com.

Port number: In some cases, a URL may specify a port number by which requests to the server are listened for. Default port for HTTP servers is 80. This port number does not need to be specified in URLs. In many cases, other port numbers may be used, example 8080 or 8000.

Path: The path refers to location on a web server.

Query. In some cases, extra information may be passed to the web server by using textual fragments. The query component is used to pass data to the server as a key-value pair after a question mark (?). Multiple query parameters can be separated using ampersands (&). Example URL: https://example.com?name=xavier&power=vision.

Designing URLs is important to help convey information to developers and other users of the system. For a REST based system, it is advisable to use nouns or noun phrases to describe resource URLs.

Routing in FastAPI is simple and very effective. A routing table (a defined list of routes) is passed to the application when instantiating it. Each route has a corresponding endpoint. Endpoint argument can be any of the following:

  • A regular function, async function, or class method which accepts a single request argument and returns as response.
  • A class that extends the ASGI interface

Conventionally, functions are used to handle responses to a given URL path by using selected methods (get, put, post, delete) of an instance of the FastAPI APIRouter class as decorators or by calling one of the routing methods (add_api_route, add_route). The APIRouter class is the base class for handling HTTP requests and this class extends the Starlette routing.Router class.

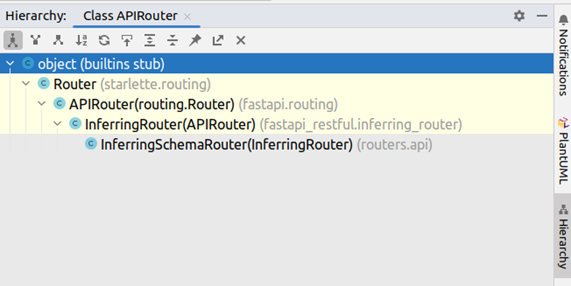

The Router classes used in the mWallet application

Figure 1

The Router classes used in the mWallet application

The InferringSchemaRouter was designed to extend fastapi_restful.inferring_router.InferringRouter class. This enables the InferringSchemaRouter to automatically convert return types of routing functions to matching Pydantic schemas following the specified database ORM class.




from typing import Any, List

from fastapi import Depends, APIRouter
from starlette.status import HTTP_200_OK, HTTP_202_ACCEPTED, HTTP_201_CREATED

from db.adapters import parse_to_schema
from schemas.user import UserPreference, UserDevices
from schemas.util import GenericResponse
from user import services as user_services

web_user_routes = APIRouter()


@web_user_routes.post('/user/preference', status_code=HTTP_200_OK,
                      description='List all notices sent to this user or notices which the selected user subscribes to.',
                      response_model=GenericResponse)
def create_user_preference(result_set: Any = Depends(user_services.create_user_preference)) -> UserPreference:
    return parse_to_schema(UserPreference, result_set)


@web_user_routes.delete('/user/preference/{preference}', status_code=HTTP_202_ACCEPTED,
                        description="Delete a selected user’s preference.")
def destroy_user_preference(result_set: Any = Depends(user_services.destroy_user_preference)) -> bool:
    return bool(result_set)

The create_user_preference function takes a result_set parameter. This parameter is injected into the function via the FastAPI Depends class. The Depends class is the FastAPI approach in implementing Dependency Injection (a technique in dynamically injecting a code into another code making them loosely coupled). The result_set can be any type of Python data and we do not need to know what type upfront. We will simply pass the result_set to a parse_to_schema function which has been designed to convert a range of data types into a specified Pydantic model class. In this example, the result_set will be converted to the UserPreference data type and returned at the end of the create_user_preference execution cycle. A similar approach is used with the destroy_user_preference which returns a Boolean.

The server responses to HTTP requests are mapped to corresponding Response objects (classes that extend the Starlette responses.Response class). Various response types are differentiated mainly by the specified media or mime which they handle. For example, the JSONResponse class manages the media type of application/json while the PlainTextResponse manages media type or mime of application/text. Other media types are mapped to their corresponding Response type or subclass. See Figure 2 below for FastAPI response classes and their hierarchy. See Table 1 for the various response classes and corresponding mime.

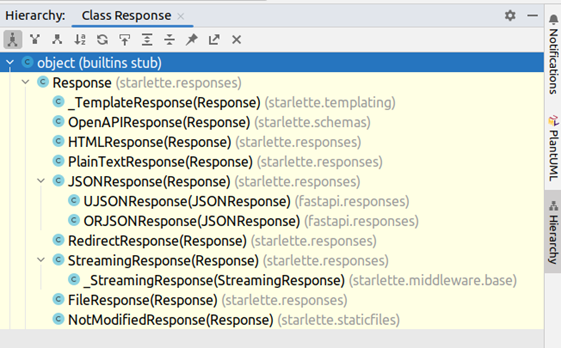

Class Hierachy of FastAPI Response classes

Figure 2

Class Hierachy of FastAPI Response classes

Response classes of the Starlette responses package. FastAPI uses Starlette’s response package internally to handle all requests.

The following response classes can be used to manage server responses.

Using YAML file for defining routes

When building a web application, thoughts should be given to the design of the URL. FastAPI being built on Starlette allows developers to use URI templating style to capture path components.


url = '/user/{id}/payment-receipts'

Fragments of the URI template can be converted to native Python data types via convertors. There are default convertors for str, int, float, uuid.UUID data types or a path variable.


d1 = '/user/{id: str}/payment-receipts'  # converts id to str type
d2 = '/user/{id: float}/payment-receipts'  # converts id to float type
d3 = '/user/{id: int}/payment-receipts'  # converts id to int type

Customised convertors can be added to a web application but that is outside the focus of this book. In the mWallet application, we will define the various URLs using a YAML file. This file will be dynamically loaded into our application and be used to provide information on each route. Some of the data extracted from the file are shown below.


- route:
    name: authentication
    description:This resource will manage user activities associated with registration, login, logout, and password reset.
    base: /authentication
    endpoints:
      - access token:
          methods: [ 'POST' ]
          success: Access token generated for user with provided credentials
          error: Unable to generated access token for the user with provided credentials
          status: 201
          path:
            url: /token
            description: |
              Provide user access token to application services using credentials such as username and password

The extract from the YAML file above shows an instance of a registered route for the mWallet application. This example is for a user authentication service. By using this approach, the development team has a working document that guides what each API endpoint could handle. This approach also enforces the team to have a clearly defined list of URLs in line with agreed system purpose statement. Some of the key terms used in the application routes.yml file are shown below (Table 2). These entries will be used by the custom AppRouter and the FastAPI APIRouter class to pass routes to the application.

We have seen earlier how to register a route in FastAPI (see Classical way of defining routes in FastAPI). We have also defined a routes.yml file that is used to register a list of routes with their corresponding components. How can we use this YML file to dynamically load routes? To answer this, we will need to discuss the AppRouter, and RouteEntry classes and see how the mWallet uses these in the router package to register all routes of the application.



import os
import re
from urllib.parse import urljoin

import yaml
from typing import Dict, List, Tuple, Any
from pydantic import BaseModel

import stringcase

__all__ = 'AppRouter', 'app_routes'

from util import extract_data


class AppRouter:
    # Process routes for the app by loading data from routes.yml

    __slots__ = '_data', '_named_routes', '_routes'

    def __init__(self, resources: Dict):
        if 'resources' in resources:
            data_ = extract_data('resources', resources)
            # get names of all routes. Instantiate RouteEntry for each route.
            self._data = []
            self._named_routes = []
            self._routes = []

            self._data = data_.copy()
            self._named_routes = [stringcase.spinalcase(stringcase.lowercase(v)) for y in self._data
                                  for k, v in y.items() if k == 'name']
            result = {}
            for entry in self._data:
                name = extract_data('name', entry)
                description = extract_data('description', entry)
                resource = extract_data('resource', entry)
                base_path = extract_data('base', entry)
                self._named_routes.append(name)
                endpoints = extract_data('endpoints', entry)
                for e in endpoints:
                    for k, v in e.items():
                        endpoint_name = f'{stringcase.snakecase(k)}@{name}'
                        result.update(dict(
                            endpoint=endpoint_name,
                            operation=extract_data('crud', e),
                            url_path=extract_data('path', e),
                            methods=extract_data('methods', e),
                            success=extract_data('success', e),
                            error=extract_data('error', e),
                            status=extract_data('status', e),
                            payload=extract_data('payload', e)))

                        route_entry = RouteEntry(name=name, path=base_path, resource=resource, description=description,
                                                 **result)
                        self._routes.append(route_entry)

    def find(self, name: str = None, endpoint: str = None):
        route_search = []
        endpoint_search = []
        if name and not endpoint:
            route_search = [x for x in self._routes if x.name == name]
        elif name and endpoint:
            route_search = [x for x in self._routes if x.name == name and endpoint in x.endpoint]
        if endpoint and not name:
            endpoint_search = [x for x in self._routes if x.endpoint == endpoint or endpoint in x.endpoint]

        if route_search and not endpoint_search:
            return route_search[0]
        elif endpoint_search and not route_search:
            return endpoint_search[0]
        elif route_search and endpoint_search:
            rsc_1 = endpoint_search[0]
            rsc_2 = route_search[0]
            if rsc_1.endpoint == rsc_2.endpoint:
                return rsc_1
            return False

    @property
    def routes(self):
        """
        Instance property of the list of routes registered in the application.
        :return: A list of instances of RouteEntry for each registered route
        """
        return self._routes

    @property
    def keys(self):
        """
        Instance property of the list of base routes registered in the application
        :return: list of named base routes
        """
        return self._named_routes

    @property
    def resources(self):
        """
        Provide a set of all named resources registered with the application routes
        :return: a set of registered Resource names.
        """

        rsc = (a.resource for a in self._routes if a.resource is not None)
        return set(rsc)


class RouteEntry:
    __slots__ = '_path', '_methods', '_name', '_success', '_error', '_status', '_url_path', '_payload',
        '_url_query', '_endpoint', '_resource', '_description', '_tags', '_operation', '_schema'

    def __init__(self, endpoint: str, path: str, methods: List, name: str, success: str, error: str, status: int | str,
                 url_path: str, payload: Dict = None, resource: str = None, description: str = None, tags: List = None,
                 operation: str = None, schema: Any | BaseModel = None):
        def _validate_status(s):
            if isinstance(s, int | str):
                if str(s).isnumeric() and 100 <= int(s) <= 600:
                    return True

        def _validate_payload(p):
            if isinstance(p, List | Tuple):
                return [z for z in p for x, _ in z.items() if x in ['name', 'description']]

        def _validate_methods(m):
            if isinstance(m, List | Tuple):
                return [x for x in m if x in ['GET', 'POST', 'PUT', 'DELETE', 'HEAD']]

        def _validate_url_path(base_url, up):

            url = extract_data('url', up)
            params = extract_data('params', up)
            if not base_url:
                raise ValueError('Invalid base URL provided')
            if not url:
                rsc = base_url
            else:
                rsc = base_url + url

            if params and isinstance(params, List | Tuple):
                pattern = r'{(.*)}'

                for p in params:
                    path_variable = extract_data('path', p)
                    if path_variable and isinstance(path_variable, List | Tuple):
                        for x in path_variable:
                            for k, v in x.items():
                                if k == 'name' and v:
                                    if re.search(pattern, rsc):
                                        re.sub(pattern, '{%s}' % v, rsc)
                                    else:
                                        rsc += '/{%s}' % v
            return rsc

        def _validate_tags(t: List):
            if t:
                return [x for x in t if isinstance(x, str)]

        def _validate_operation(op: str):
            if op in ['add', 'edit', 'delete', 'view', 'list']:
                return op

        self._endpoint = endpoint if isinstance(endpoint, str) else None
        self._path = path if isinstance(path, str) else None
        self._methods = _validate_methods(methods)
        self._name = name if isinstance(name, str) else None
        self._success = success if isinstance(success, str) else None
        self._error = error if isinstance(error, str) else None
        self._status = status if _validate_status(status) else None
        self._url_path = _validate_url_path(urljoin(name, self._path), url_path)
        self._payload = _validate_payload(payload)
        self._resource = resource if isinstance(resource, str) else None
        self._description = description if isinstance(description, str) else None
        self._tags = _validate_tags(tags)
        self._operation = _validate_operation(operation)
        self._schema = schema

    @property
    def path(self):
        return self._path

    @property
    def methods(self):
        return self._methods

    @property
    def name(self):
        return self._name

    @property
    def success(self):
        return self._success

    @property
    def error(self):
        return self._error

    @property
    def status(self):
        return self._status

    @property
    def url_path(self):
        return self._url_path

    @property
    def payload(self):
        return self._payload

    @property
    def endpoint(self):
        return self._endpoint

    @property
    def resource(self):
        return self._resource

    @property
    def description(self):
        return self._description

    @property
    def tags(self):
        return self._tags

    @property
    def crud_type(self):
        return self._operation

    @property
    def schema(self):
        return self._schema

    @schema.setter
    def schema(self, value):
        if isinstance(value, (Dict, BaseModel)):
            self._schema = value


base = os.getcwd()
route_path = os.path.join(base, 'routers', 'routers.yml')
app_routes = None

with open(route_path, 'r') as fh:
    try:
        data = yaml.safe_load(fh)
        app_routes = AppRouter(data)
    except yaml.YAMLError:
        raise

The AppRouter class serves as a registry of all API endpoints for the system. This class defines three parameters: routes, keys, and resources. The routes parameter returns a list of RouteEntry objects that holds information (example name, URL, description etc.) about each route. The keys parameter gives a list of names that are mapped to each route. The resource parameter provides a set of named resources (example Order) which are registered in the system. The __init__ function of the AppRouter class is where data read from routes.yml is parsed and added to an internal list called _data. Each entry from the routes.yml file is parsed into an instance of RouteEntry by extracting attributes (description, resource, base, endpoints, name) from the routes.yml data.

The find method of the AppRouter class is used to verify if a given named route exists within the defined list of routes. This function can take a name or endpoint parameter. If only the name is given, then the search is based only on the name assigned to a route as defined in routes.yml.


- route:
    name: authentication
    description:This resource will manage user activities associated with registration, login, logout, and password reset.


>>> app_routes.find(name='authentication')
<routers.RouteEntry object at 0x7f45e52d4860>

If only the endpoint is given then the search is based on the name of the function registered against the route.


- route:
    name: authentication
    description:This resource will manage user activities associated with registration, login, logout, and password reset.
    base: /authentication
    endpoints:
      - access token:
        methods: ['POST']


>>> app_routes.find(endpoint='access_token')
<routers.RouteEntry object at 0x7f45e52d4860>

Notice that the endpoint is specified without spaces as this closely matches a function name in Python. Searches can also be done by specifying the named route to which the function is assigned using the @ symbol.


>>> app_routes.find(endpoint='access_token@otp')
<routers.RouteEntry object at 0x7f45e52d4860>

From the returned RouteEntry object, we can access information such as HTTP methods supported by calling property methods; the name of the route by calling name; the type of CRUD (Create Read Update Delete) operation supported at this API endpoint by calling crud_type; the description; the path and many other properties as defined in RouteEntry. More importantly, we can register routes in logical groups without the need of typing all entries manually.


from authentication.services.jwt_handler import user_login, user_logout, user_signup
from authentication.services.otp import verify_login_otp, generate_login_otp
from permissions import Permission
from routers import app_routes
from routers.api import InferringSchemaRouter

# Define the various ACL for catalogue services as scopes.

acl = Permission()

service = 'Services'
prefix = 'organization'

auth_router = InferringSchemaRouter()

r1 = app_routes.find(endpoint='user_login')
r2 = app_routes.find(endpoint='user_logout')
r3 = app_routes.find(endpoint='user_signup')
r4 = app_routes.find(endpoint='verify_login_otp')
r5 = app_routes.find(endpoint='generate_login_otp')

# Match routes to functions
add_auth_routes = [
    (r1, user_login),
    (r2, user_logout),
    (r3, user_signup),
    (r4, verify_login_otp),
    (r5, generate_login_otp)
]

# dynamically add routes to instance of APIRouter using loaded RouteEntry objects

for entry in add_auth_routes:
    r, e = entry
    if r:
        auth_router.add_api_route(r.url_path, endpoint=e, description=r.description,
                                  status_code=r.status, methods=r.methods, response_description=r.success,
                                  name=r.endpoint)

The routes r1 to r5 are mapped to functions user_login, user_logout, user_signup, verify_login_otp, and generate_login_otp as a list of tuples. This list is then iterated and each route and entry added to the specified APIRouter instance. This way, defined routes can be managed from a centralised routes.yml file and changes to the routes or associated parameter is automatically reflected in the system on reboot or start up.

Read more

The mWallet Project Application services
